Below is a consolidated, practical technical guide to the GST I-9102 intelligent (addressable) photoelectric smoke detector — what it is, how it works, main specifications, installation and commissioning notes, typical applications, maintenance and troubleshooting tips, and regulatory/compatibility points.

1. Product summary — what it is and where it’s used

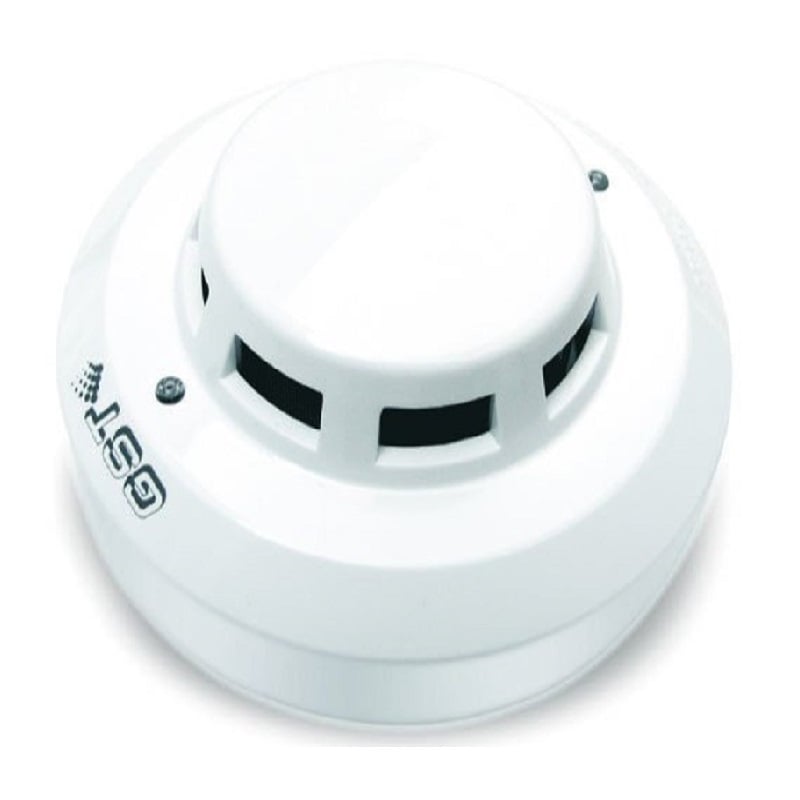

The GST I-9102 is an intelligent (addressable) photoelectric smoke detector designed to work with GST addressable fire alarm control panels. It uses an infrared light-scattering (photoelectric/optical) sensing chamber and an on-board microprocessor for signal processing, drift compensation and self diagnostics. The device reports its status and alarm condition back to the fire panel using the loop communications and is field-addressable (using GST’s handheld programmer). Typical applications include hotels, restaurants, offices, schools, libraries, computer rooms and other general-risk indoor spaces.

2. How it detects smoke (operation principle)

The detector uses infrared scattering (photoelectric) — an IR source and photodiode inside a chamber detect light scattered by smoke particles. Under normal, smokeless conditions only a tiny IR signal reaches the photodiode; when smoke enters the chamber it increases scattering and the microprocessor compares the signal against thresholds to decide alarm, pre-alarm or clean-state. The on-board processor implements drift compensation so sensitivity is automatically adjusted over time as dust accumulates (reducing false alarms while maintaining reliability).

3. Key features (high-level)

Addressable: each unit is programmed with a unique address on the GST loop (field programmable).
Photoelectric (optical / IR scattering) smoke sensing for smouldering and visible-smoke fires.
Built-in microprocessor with history logging (stores event history entries).
Twin/360° LED indicators for clear visual status (alarm/communication).
Drift compensation and self-diagnostic capability to reduce nuisance alarms and signal faults.
Remote indicator output available (for remote LED indicators or remote annunciation).

4. Typical technical specifications (representative)

Note: use the project-specific datasheet for final acceptance criteria; values below come from GST product documents and distributor listings.

Operating voltage: 24 V DC (loop).
Standby current: ~1 mA; alarm current: ~7 mA (typical).
Alarm output (sounder on detector base if fitted): listed alarm SPL 89 dB @ 1 m (where integrated base or local sounder is used).
Operating temperature: −10 °C to +50 °C (typical range shown in manuals).
Relative humidity: up to 95% (non-condensing).
Dimensions: ~100 mm diameter; height typically ~35 mm (without cover) and ~45 mm with cover — low-profile design.
Standards: declared compliance with EN 54-7 (optical smoke detectors) on the datasheet. The Big

5. Addressing & commissioning

Each detector is assigned a unique address on the GST intelligent loop. Addressing is performed in the field using GST’s P-9910B handheld programmer (two-wire connection to the detector terminals for programming). After addressing, detectors communicate status to the panel and can be included in zone/point configuration. Always follow the panel’s commissioning procedure to map device addresses to logical zones and actions.

6. Mounting & siting guidance (practical points)

Mount on ceilings (or on detector backbox) in the center of rooms where possible. Maintain the manufacturer’s recommended spacing and maximum coverage per detector — for most general-risk spaces follow local code and the GST spacing guidance from the manual. Avoid mounting within air supply diffusers, directly above kitchens (unless specifically permitted), or next to strong airflows that may prevent smoke reaching the sensing chamber. Angle of mounting: installation drawings show guidance to keep the detector within ±45° inclination from horizontal for correct operation. Refer to the product manual for recommended spacings for specific occupancies.

7. Testing & maintenance

Regular functional tests: use a detector test tool (aerosol test or test lamp as listed by GST) to confirm alarm threshold and LED/communication response. Notify the building occupants and authority before testing.
Cleaning: detectors should be inspected and cleaned on a maintenance schedule (frequency depends on environment). Dusty or oily atmospheres require more frequent cleaning. Do not use water or solvents on the sensing chamber. Manual describes how to remove the cover, clean the chamber with gentle vacuuming or a soft brush, then refit.
Self-diagnostics: the device reports fault conditions (e.g., chamber contamination, wiring fault) to the control panel; follow panel fault codes to locate issue.

8. Compatibility & system integration

Designed for use with GST intelligent panels (GST-series panels and compatible loop controllers). Check panel firmware and detector compatibility before installation. The detector’s communications and address scheme are GST proprietary; while some integrators may integrate GST devices into third-party systems, this requires protocol support or gateway devices.

9. Advantages & limitations

Advantages:

Photoelectric detectors are particularly effective at detecting smouldering or slow-burning fires (smoke with larger particles). Addressable capability allows precise location and advanced panel features (history, drift compensation, cause-and-effect).

Limitations:

Photoelectric detectors are less sensitive to very fast flaming fires that produce little visible smoke (consider multi-sensor or heat detectors where flaming fire detection is needed). Environmental contamination (dust/oil) can affect performance — maintenance and drift compensation mitigate this. Use the correct detector type for the specific risk.

10. Troubleshooting — common faults & fixes

Persistent false alarms: check for installation in high-airflow area, cooking/oil aerosol sources, or excessive dust. Clean chamber, relocate if necessary, or change sensitivity settings via the panel if allowed.
Detector not communicating / shown as fault: confirm loop wiring, detector address, and correct termination. Use handheld programmer to verify address and device health.
No LED indication: verify loop voltage and wiring; consult the panel event log to see if the detector has failed or been removed.

11. Ordering & documentation

When ordering, specify exact part number (I-9102) and any accessory bases or protective insect/dust covers required. Request the latest installation and technical manual from your GST distributor for up-to-date instructions, and ensure devices have the required approvals for your jurisdiction. The official GST product pages and the I-9102 installation manual provide diagrams, wiring terminal details and commissioning steps.

12. Final notes & references

For installation, commissioning and acceptance testing always use the manufacturer’s manual and comply with national/local codes (e.g., local fire authority, EN/ISO standards applicable). The summary above is compiled from the GST I-9102 datasheet/manual and reputable distributor product pages; for purchase decisions or engineering acceptance use the official GST documentation and test reports.
